LNG Venicle Cylinders is also called LNG car bottle, which is a high-vacuum multi-layer adiabatic gas cylinder containing LNG medium, which is specially used to replace the fuel tank on the car, providing safe, efficient, clean and economic energy for the engine.
| Padrões do produto: | ISO11439, ECER110 |
| Product specifications （mm）: | Φ556x 1209 |
| Design temperature ℃: | -196 |
| Working pressure (Pa) ： | 159 |
|
Net weight of gas cylinder(Kg): |
136 |
| Main Material : |
Austenitic stainless steel |
Contate-nos
PRODUTOS QUENTES
Descrição detalhada
Especificação
Vídeo
[excel | 2025.04.30]

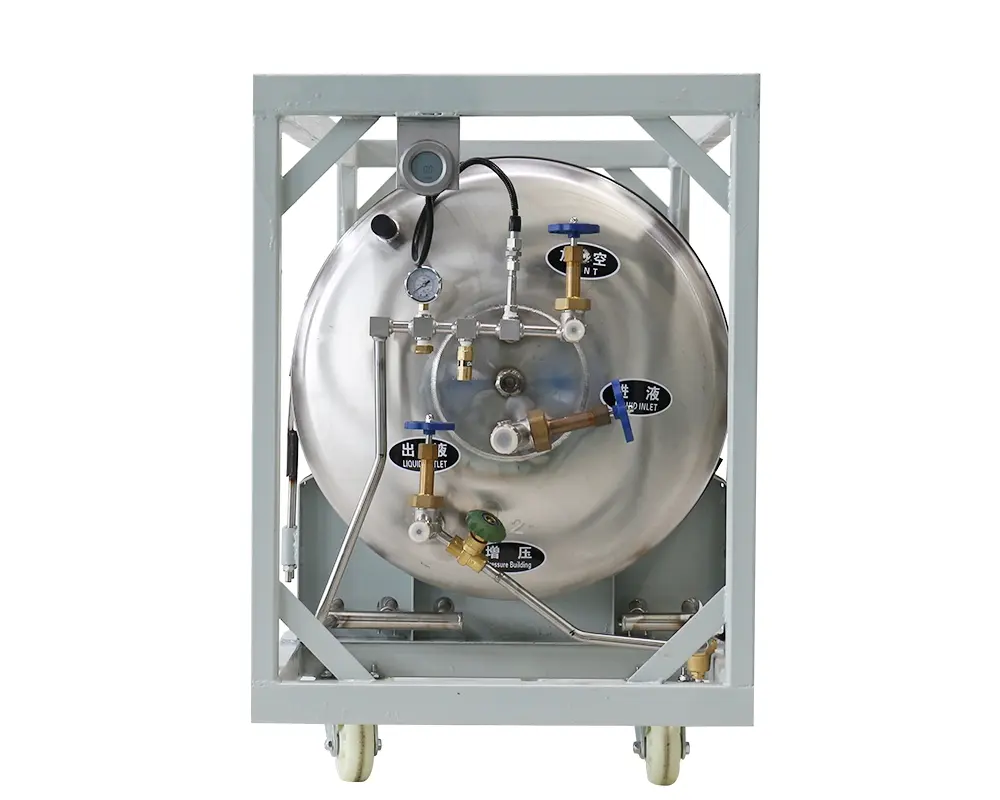

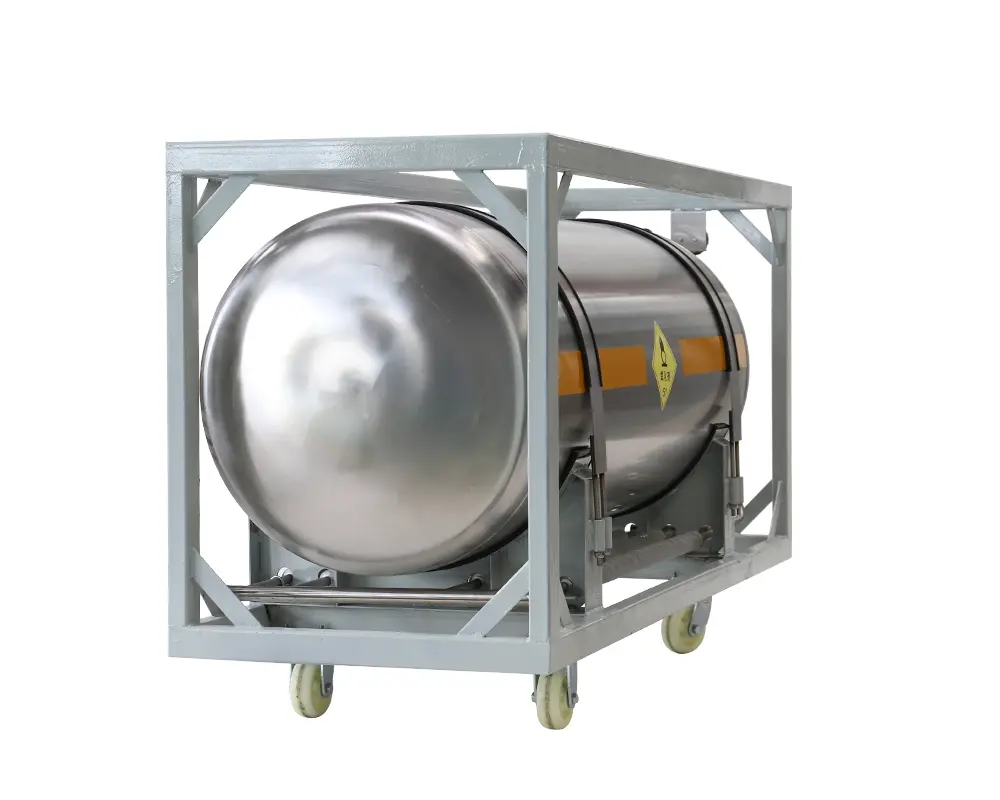

Cryogenic LNG Cylinders for Vehicles - ISO 11439 Certified
The LNG cylinder is a thermally insulated pressure vessel specifically designed for storing cryogenic liquefied natural gas, featuring high safety standards and lightweight properties, widely used in vehicle and marine fuel systems.
| Padrões de produtos | Estrutura de base | Product specifications （mm） | Maximum filling capacity （Kg） | Full load weight （Kg） | Main Material | Design temperature ℃ | Pressure test pressure (Pa) | Pressão de trabalho MPa (Pa) |
| ISO11439 ECER110 | Saddle support | Φ556x 1209 | 52 | 188 | Austenitic stainless steel | -196 | 318 | 159 |
The main purpose is to store and transport liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquefied natural gas and other cryogenic liquids.
Application fields: industrial production, medical field, scientific research field, food industry.
|
Project |
Product model and corresponding parameters |
|||||||||
|
CDPW500-150-1.59 |
CDPW500-160-1.59 |
CDPW500-170-1.59 |
CDPW500-175-1.59 |
CDPW500-180-1.59 |
CDPW500-185-1.59 |
CDPW500-190-1.59 |
CDPW500-200-1.59 |
CDPW500-205-1.59 |
CDPW500-210-1.59 |
|
|
Product specifications mm |
Φ556x1159 |
Φ556x 1209 |
Φ556x 1259 |
Φ556x 1284 |
Φ556x1309 |
Φ556x 1334 |
Φ556x 1361 |
Φ556x 1412 |
Φ556x 1439 |
Φ556x 1464 |
|
Nominal volume L |
150 |
160 |
170 |
175 |
180 |
185 |
190 |
200 |
205 |
210 |
|
Effective volume L |
135 |
144 |
153 |
157.5 |
162 |
166.5 |
171 |
180 |
184.5 |
189 |
|
Net weight of gas cylinder Kg |
131 |
136 |
141 |
143 |
145 |
148 |
150 |
155 |
158 |
160 |
|
Maximum filling capacity Kg |
49 |
52 |
56 |
57 |
59 |
61 |
62 |
66 |
67 |
69 |
|
Full load weight Kg |
180 |
188 |
196 |
200 |
204 |
208 |
213 |
221 |
225 |
229 |
|
Static evaporation rate %/d |
≤2.90 |
≤2.70 |
≤2.50 |
≤2.40 |
≤2.38 |
≤2.36 |
≤234 |
≤2.30 |
≤2.30 |
≤2.29 |
|
Pressão de trabalho MPa |
1.59 |
|||||||||
|
Pressure test pressure MPa |
3.18 |
|||||||||
|
Design temperature ℃ |
-196 |
|||||||||
|
Main safety valve opening pressure MPa |
1.6 |
|||||||||
|
Secondary safety valve opening pressure MPa |
2.41 |
|||||||||
|
Filling Medium |
LNG |
|||||||||
|
Airflow rate Nm3/h |
60~120 |
|||||||||
|
Economic valve settingvalue MPa |
0.965 |
|||||||||
|
Pressure display mode |
Pressure gauge and pressure sensor |
|||||||||
|
Surface treatment |
Polimento |
|||||||||
|
Tipo de medidor de nível de líquido |
Capacitive level gauge |
|||||||||
|
Estrutura de base |
Saddle support |
|||||||||
|
Main material |
Austenitic stainless steel(06Cr19Ni10 or 304) |
|||||||||
